5.6 SUPER and SUPER+ Objects (WORLD_2 Only)

Creation of SUPER and SUPER+ objects:

ONE SUPER Object will be generated for every ONE set of RED, GREEN and BLACK objects collected and deposited (in one single trip to the Collection Box) in the WORLD_2.  ONE SUPER+ Object will be generated for every TWO sets of RED, GREEN and BLACK objects collected and deposited (in one single trip to the Collection Box) in the WORLD_2.

The SUPER or SUPER+ objects generated by BLUE team can only be collected by the BLUE team itself. Likewise, the SUPER or SUPER+ objects generated by RED team can only be collected by the RED team itself.

Size, colour and shape of SUPER and SUPER+ objects:

As shown in Fig. 5-6, the SUPER and SUPER+ objects are about 5mm in diameter. They are circular in shape and purple in colour.

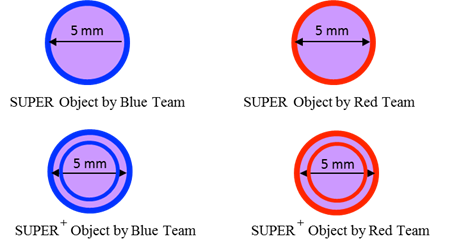

Fig. 5-6: SUPER and SUPER+ objects

Placement of SUPER and SUPER+ objects:

The SUPER and SUPER+ objects will be placed on the lines 15 cm away from the wall, refer to Fig. 5-7. The line reference number (Line 1, 2, 3, or 4) will be sent to the respective virtual ROBOT upon the SUPER objects’ creation.

The Line number will be assigned to the system variable, SuperObj_X, meanwhile the system variable SuperObj_Num will be set to 1. After 2 seconds, SuperObj_X and SuperObj_Num will be reset to 0.

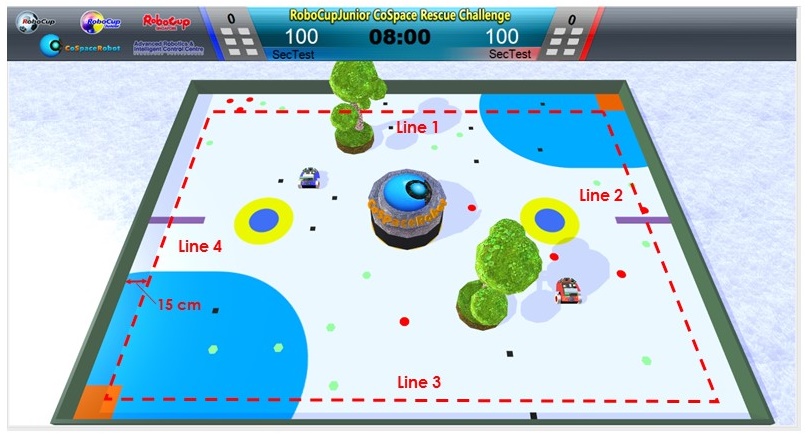

Fig. 5-7: Placement positons of SUPER and SUPER+ objects

(Refer RCJ CoSpace Rule 2016 for details)
